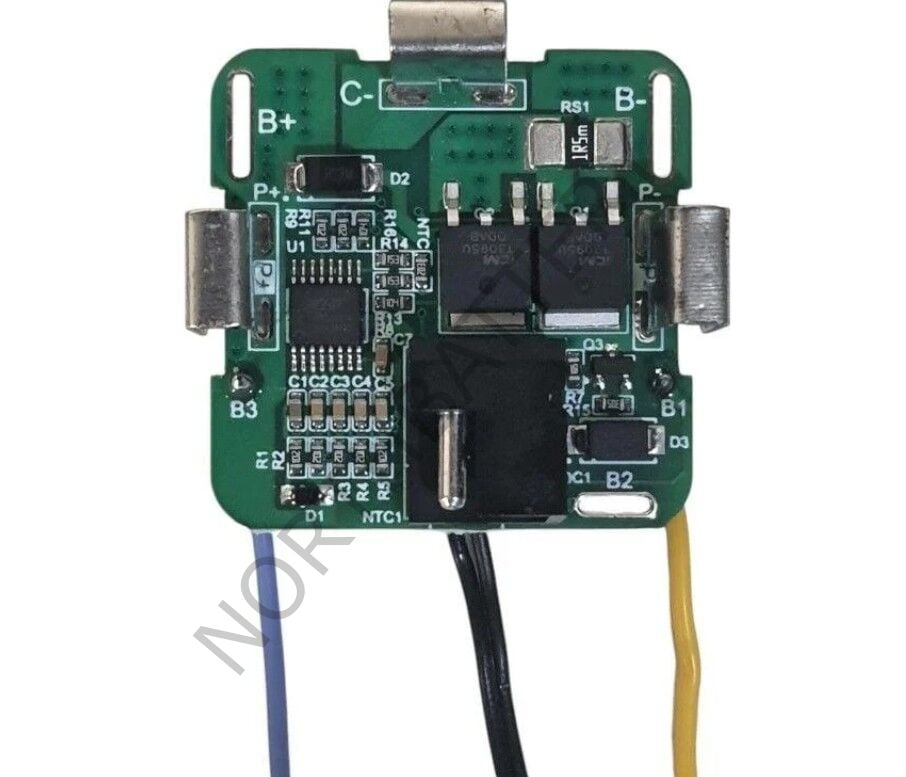

OLT 4S 20A Lityum Matkap BMS Kare Tip (NTC'li)(18650)
(0) Yorum - 0 Puan
113,66 TL
18650 tipteki 2x2 dizilmiş pil grubuna uygun ölçüdedir.
21700 pil grubuna uymaz.
Charge Voltage:16,8V
Single Cell Charge Voltage:3.8/4.25V
Continuous Discharge Current:8-20A
Overcharge Single Cell Detection Voltage:3.85-4.25V
Overcharge Protection Delay:1sn
Overcharge Single Cell Recovery Voltage:3.75-4.13V
Overcharge Protection Release Delay:1mS
Over-discharge Single Cell Detection Voltage:2-2.8V
Over-discharge Protection Delay:1sn
Over-discharge Single Cell Recovery Voltage:2.5-3.0V
Over-discharge Protection Release Delay:100±20mS
Over-current Detection Voltage:0.1-0.4V
Over-current Detection Current:30±5A
Over-current Detection Delay:1S
Short Circuit Protection Support:Yes
Short Circuit Detection Delay:250uS
Short Circuit Release Delay:1S
Short Circuit Detection Voltage:0.8V
Recovery State:Auto after Disconnect Load
Over Temperature ProtectionProtection Temperature:70±5°
Recovery Temperature:55±5°
Working State:25uA (25°)
Stand-by State:6uA(25°)
Discharge Main Circuit Internal Resistance:30±5mΩ
Operating Temperature: -40°-85° RH≤75%
Store Temperature: -40°-125° RH≤75%
SizeLength x Width: 34x34x1,6 mm
Package Contents:
1 Pc x Battery Charger Protection Board
21700 pil grubuna uymaz.
Charge Voltage:16,8V
Single Cell Charge Voltage:3.8/4.25V
Continuous Discharge Current:8-20A
Overcharge Single Cell Detection Voltage:3.85-4.25V
Overcharge Protection Delay:1sn
Overcharge Single Cell Recovery Voltage:3.75-4.13V
Overcharge Protection Release Delay:1mS
Over-discharge Single Cell Detection Voltage:2-2.8V
Over-discharge Protection Delay:1sn
Over-discharge Single Cell Recovery Voltage:2.5-3.0V
Over-discharge Protection Release Delay:100±20mS
Over-current Detection Voltage:0.1-0.4V
Over-current Detection Current:30±5A
Over-current Detection Delay:1S
Short Circuit Protection Support:Yes
Short Circuit Detection Delay:250uS
Short Circuit Release Delay:1S
Short Circuit Detection Voltage:0.8V
Recovery State:Auto after Disconnect Load
Over Temperature ProtectionProtection Temperature:70±5°
Recovery Temperature:55±5°
Working State:25uA (25°)
Stand-by State:6uA(25°)
Discharge Main Circuit Internal Resistance:30±5mΩ
Operating Temperature: -40°-85° RH≤75%
Store Temperature: -40°-125° RH≤75%
SizeLength x Width: 34x34x1,6 mm
Package Contents:
1 Pc x Battery Charger Protection Board
