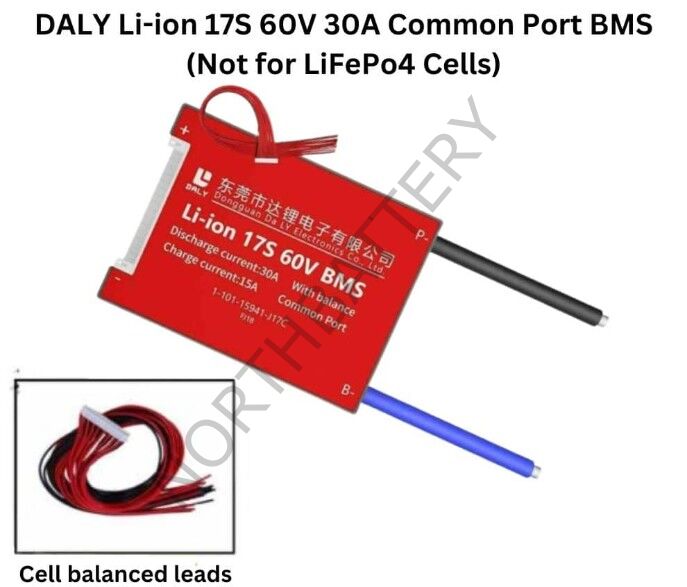

DALY 17 S 30 AH BMS
(0) Yorum - 0 Puan
Kategori
Stok Kodu
8TG6XL8THX
Fiyat
26,67 USD + KDV
*153,71 TL den başlayan taksitlerle!
1.423,16 TL
| DESCRIPTION | SPECIFICATION |
|---|---|
| BATTERY TYPE | Li-ion |
| Continue discharge current | 30A |
| Peak current | 90A±15A |
| main circuit inner resistance | ≤ 20mΩ |
| Charge Voltage | S*4.25V |
| Charge Current | 15A |
| Over charge detect voltage | 4.25 ± 0.05V |
| Over charge protection delay | 1 Sec |
| over charge release voltage | 4.15 ± 0.05V |
| Balance detect voltage | 4.18V |
| Balance release voltage | 4.18V |
| Balance current | 30± 5mA |
| Over discharge detect voltage | 2.7 ± 0.1V |
| Over discharge detect delay | 1 Sec |
| Over discharge release voltage | 3.0 ± 1.0V |
| Over current detect delay | 1 mS |
| Over current detect voltage | OFF LOAD |
| Short circuit protection condition | Short circuit external load |
| Short circuit detect delay | 250µS |
| Short circuit protection relay condition | Off load |
| Temp protection | Charge <-5 ͦ C or >50 ͦ C
discharge < 70 ͦ C |
| working current | 100µA |
| Sleeping current (when in discharge) | 20µA |
| Working temp range | -20 ̴ 70 ͦc |
| Sleeping temp range | -40 ̴ 80 ͦc |
| Weight | 8 ounces |
| Size | 2.6*5*0.6inches |
| Wiring Diagram | Daly wiring diagram |
